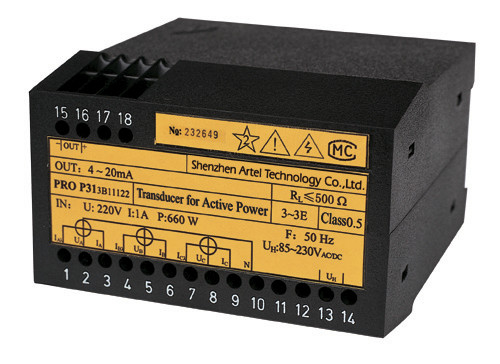

3P 3W 1.5X 600V PRO Electrical Transducer Active / Reactive Power Factor

3P 3W 1.5X 600V PRO Electrical Transducer Active / Reactive Power Factor

1. Product Description

Pro Series Transducers for Electrical Quantities, fundamental devices for process automation. All our

 instruments fulfill all important requirements and regulations concerning electromagnetic compatibility

and safe isolation (IEC688-1992 standard and GB/T 13850-1998 standard). The devices have been

developed, manufactured and tested in accordance with Quality Assurance System ISO 9001.

2. Technical Specification

Accuracy: Class0.2,0.5

Auxiliary Power Supply: 85V~265VDC/AC 24V~80VDC/AC

Stability: Annual Change Rate ≤±0.2%

Input Overload Capacity:

Continuous Overload Capacity ≤1.5X

Transient Overload Capacity  Voltage Limit≤3X  Current Limit≤30X

Output:

Constant Voltage Output, Load Resistor    Rext≥250Ω

Constant Current Output, Load Resistor    Rext≤500Ω

Alternating Wave: ≤18mV(Peak-Peak)

Response Time: ≤300ms

Striking Voltage: ≤2.5kV

Operating Temperature: -10℃~+55℃

Storage Temperature: -40℃~+85℃

Relative Humidity of Annual Mean: ≤90%RH

Installation: DIN 35mm Rail

Size: 105mm×69mm×112mm

Guaranty Period: 2 years

3. Technical Data

Measuring mode: single phase, 3P3W

Input Voltage: 100V, 220V, 380V, 600V

Input Current: 0A~1A, 0A~2A, 0A~5A

Power Factor: cosφ 0~1,  sinφ0~1

Output: 4mA~20mA, 4mA~12mA~20mA, 0mA~±20mA, 0mA~±1mA, 0mA~±10mA, 0V~±1V, 0V~±5V,

0V~±10V

4. Wiring diagram

         PRO S32 wiring diagram (3P3W)

Notes :single phase connection need remove “IB ,IB,N”,Single phase connection need remove “I3*,I3,L3”,

“L2” connect to null line .
