Wireless Temperature Humidity Data Logger

large.img.alt
small.img.alt

Large Image :  Wireless Temperature Humidity Data Logger Get Best Price

Product Details:
Place of Origin: China
Brand Name: Artel
Model Number: ARZ-1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: 1 month
Payment Terms: TT
Detailed Product Description
Feature: ARZ-1 Wireless Application: Transportation Area , Arge Area
Display: TFT True Color LCD
High Light:

temperature and humidity data loggers

,

relative humidity data logger

IP65 Temperature Humidity Data Logger Wireless




Product Profile:


ARZ-1 wireless temperature and humidity detection system is composed by wireless temperature detection probes, humidity detection probes and display terminals. Adopting the         advanced wireless temperature detection technology, ARZ-1 transmits and displays the real time value detected from the local detection probes for the purpose of inspecting temperature and humidity on-site routinely. The alarm relay sends out signal when the temperature and humidity data exceeds or lowers the setting alarm value, and the alarm points can be found quickly by checking the alarm information. ARZ-1 also provides curve diagram for checking temperature and humidity variation in short period for equipments management purpose. ARZ-1 can achieve the remote monitoring function by transmitting the measured data to DCS monitor centre or equipments management centre thru RS-485 port or Ethernet port.





Application:


Real time monitoring and sampling temperature in the following areas:
Power distribution connector, like high-voltage switch contactor, bus connector, and cable connector etc.
Equipments onsite, like transmission system, pump, fan, and bearing bush in all kinds of mechanical devices.
Dangerous area like oil tank, gas tank, dangerous goods warehouse and other areas that are not suitable for manual work.
Transportation area, like port, subway, and tunnel etc.
Large area, like barns, frozen storage, warehouse, and public site.





Product Feature:


Complete user management function
Add, sort, and setup property of the temperature detection probes on line
Aggregated operating time management function
Wireless communication disconnection detection and alarm function
Exceed limit alarm function
Trend wave local display function
History data record and search function
Self-diagnosis function and fault signal auto sent when diagnosized





Technical Specification:

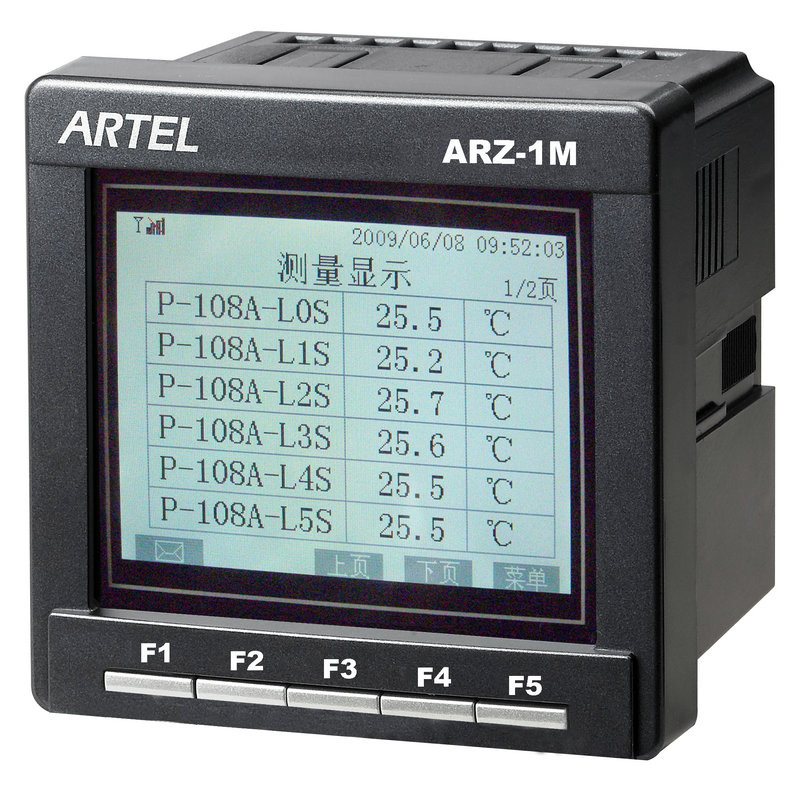

ARZ-1M temperature and humidity display terminal (max. of 108 probes.)
Display:  TFT true color LCD
Wireless communication distance:  ≥100m without blocking.
Communication port:  1 channel RS-485; Modbus-RTU protocol.
Relay contact capacity:  5A/250VAC
Auxiliary power supply:  85~265VAC/DC
Installation Size:  91mmx91mm

ARZ-1T temperature probe:
Temperature scope and accuracy:  -20~125℃,,±0.5℃
Power supply:  Lithium Ion Battery
Life span:  ≥ 5years(From manufacture date to out of use)
Protection class:  ≥IP65

ARZ-1S humidity probe
Humidity measure scope and accuracy:  0~100%RH, ±4.5%RH
Response time:  ≤4S

ARZ-1J heater
Made by high radiator type nichrome heater strip and high quality alloy aluminum panel, ARZ-1J has the advantages of heating-up quickly, thermal dissipation equally and long life span.
Input voltage as AC220V, heating power: 50W, 100W, 150W, 200W separately.

ARZ-1Z wireless relay
Wireless communication distance:  ≥300 meters without blocking.
Communication port:   1 channel RS-485; Modbus-RTU protocol.
Auxiliary power supply:  85~265VAC/DC






Competitive advantage :


We can follow the Customer-oriented principle, Artel Tech. aims to innovate hi-tech products and provide comprehensive solutions continuously, and continue to offer qualified products and excellent services to its global customers.

Artel's successful strategy is reflected in the number of certifications, including ISO9001 and CE quality system certification, Software Enterprise certificate issued by National Information Department, and hi-tech company certificate issued by government, etc.
