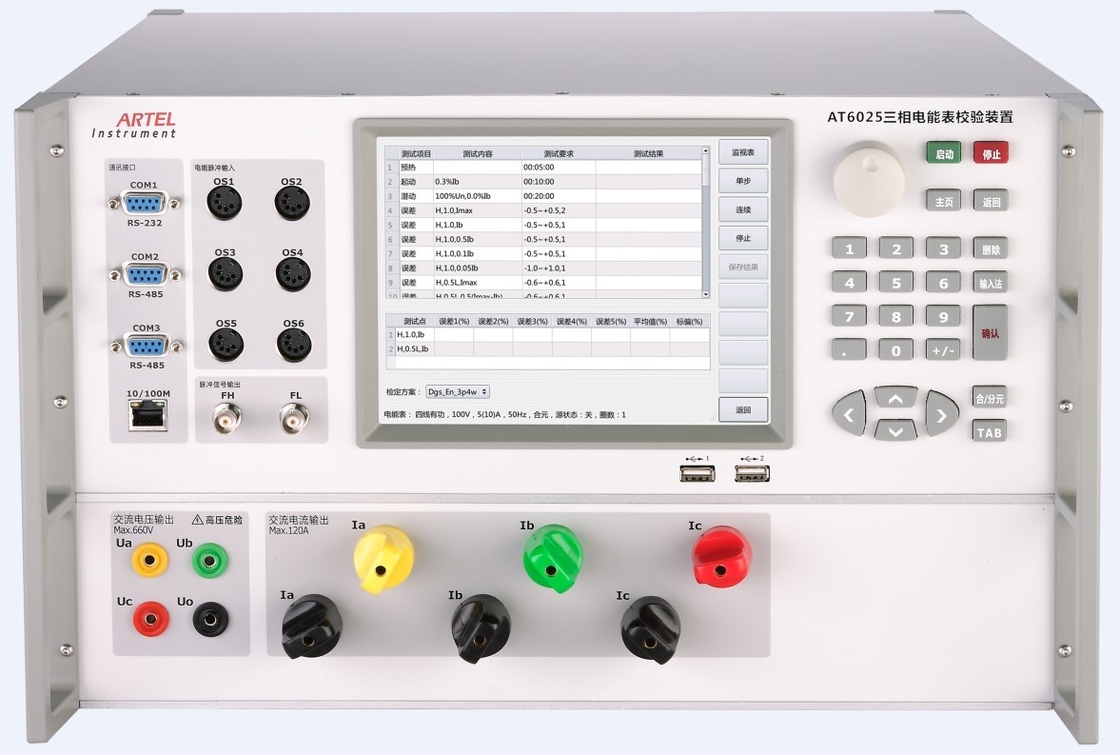

Touch Screen Energy Meter Calibration With Automatic Calibration System

large.img.alt
small.img.alt

Large Image :  Touch Screen Energy Meter Calibration With Automatic Calibration System Get Best Price

Product Details:
Place of Origin: China
Brand Name: Artel
Model Number: AT6025C
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: 1 month
Payment Terms: TT
Detailed Product Description
Product Name: Energy Meter Calibrator Interface: RS232 / RS485 / Ethernet
Type: Single Phase / 3 Phase AC Current Capacity: 100VAmax/ Phase @100A
AC Voltage Range: 57.7V~380V Power Supply: AC 220V±15%
Power Supply: AC 220V±15%
High Light:

energy meter calibration equipment

,

energy meter test equipment



Touch Screen Energy Meter Calibration With Automatic Calibration System







Main Features:



  • Accuracy :U, I, P, Kwh : ±0.05%; Q, Kvarh : ±0.1%;
  • U, I, P stability : 0.01%RG/3min, AC Voltage and AC Current distortion : ≤0.2%;
  • Current scope: Min. 0.05A, Max. 100A(Max output 120A); Voltage 57.7V-380V;
  • Export 2nd-63rd harmonics, and measure & analyze the harmonics;
  • With OCXO daily error of energy meter can be detected;
  • 7" color touch screen, interface friendly, easy to operate;
  • Equipped with RS232 & Ethernet interface, AT6025C can be operated either stand-alone, or controlled by PC;
  • Automatically or single-step manually test basic error, Creeping, start, standard deviation of single/three phase energy meter, besides, automatically testing can be self-defined by user;
  • Automatic Calibration System can be customized according to customer's requirements;
  • Exchange the testing settings and testing records thru U disk(or SD card);
  • Remotely updating online, easily achieve software updating;
  • Equipped with barcode gun interface, parameters of tested meters can be easily scanned in;
  • Communicate with tested meters thru RS485, Ethernet, RS232;
  • Self-protection, alarming and displaying overload location for equipment output overload, Voltage short-circuit, Current open-circuit;
  • Self-diagnosis for amplifier failure and internal module communication failure;
  • Test 3 energy meters with the same model type at one time
  • Test energy meters with the accuracy of Class 0.2 and below (Class 0.05 equipment);





Technical Specification





Range

Capacity

Adjustment

Degree

Adjustment

Range

Stability

Distortion

(linear load)

Measurement

accuracy

AC Voltage

 57.7V~380V

30VAmax/

phase

0.01%RG

0~120%RG



0.01%RG

3min CL0.05

0.02%RG

3min CL0.1

0.2% CL0.05

0.5% CL0.1

±0.05%RG CL0.05

±0.1%RG CL0.1

AC Current

 0.05A~120A

100VAmax/

phase

@100A

0.01%RG

0~120%RG



0.01%RG

3min CL0.05

0.02%RG

3min CL0.1

0.2% CL0.05

0.5% CL0.1

±0.05%RG CL0.05

±0.1%RG CL0.1

Phase

0.00°~359.99°



0.01°

0.00°-359.99°

0.01°



±0.05°

Frequency

40Hz ~70Hz



0.002Hz

40Hz -70Hz

0.002Hz



±0.003Hz

Power/Energy













±0.05%RG CL0.05

±0.1%RG CL0.1

pf≥0.5

Output

Harmonics

2nd to 63rd



0.01%RG

≤40%







Refrence Crystal

Oscillator(OCXO)









±0.5ppm

0.05sec/day









Other Parameters



Aux. Power Supply

AC 220V±15%

Working Environment

Environment Temperature 20℃-30℃, Humidity: RH ≤85%

Dimensions

685mm(L)×440mm(W)×180mm(H)

Weight

46KG

LCD Size

7 inch color touch screen
