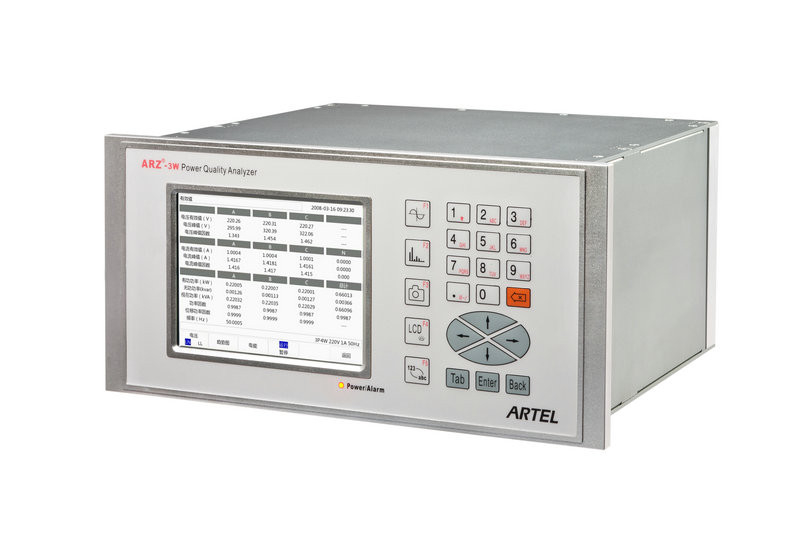

Smart Single phase Power Quality Analyser For Power Loads

large.img.alt
small.img.alt

Large Image :  Smart Single phase Power Quality Analyser For Power Loads Get Best Price

Product Details:
Place of Origin: China
Brand Name: Artel
Model Number: ARZ-3W
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: 1 month
Payment Terms: TT
Detailed Product Description
Product Name: Power Quality Analyzer Application: Power Loads Analysis
Feature: Smart Type: Single Phase And 3 Phase
Frequency Scope: 50 / 60 Hz Remote Signal Input: 34 Channels Remote Signal Input 24VDC
High Light:

3 phase power quality analyzer

,

ac current monitor



Smart Single phase Power Quality Analyser For Power Loads







Product Profile



ARZ®-3W power quality analyzer is an integrated monitoring, analyzing and controlling device that offers electrical parameter metering, harmonics metering and analysis, waveform sampling, measurement of Voltage swell, dip, interrupt, Voltage unbalanced ratio, demand, fault record, event record, data record. ARZ®-3W can monitor and detect if the power quality fulfills IEC and EN standard.

ARZ®-3W fulfils all the important requirements of IEC 61000-4-30 Class A standard.

ARZ®-3W can work with our power quality monitoring and management software to provide energy management solutions for enterprises. With its strong networking capability, ARZ®-3W can display and record all the data records on the interactive trend chart. A data report can be formed periodically. The report can be used for fault analysis, statistics, real time monitoring purpose.





Application



>Power quality detection and management

>Disturbance analysis, faults analysis, device pre-maintenance

>Long term record and analysis

>Power loads analysis

>Energy consumption evaluation and analysis

>Utilizing GPS synchronization to analyze the relevance between events in different locations

>Applied scope: Single phase and 3phase electrical power system





Main functions



Measured scope

1P2W,3P3W,3P4W,3P5W  programmable

Basic parameters measurement:

Voltage, Current (including, negative, zero sequence Current),

 frequency, power factor, active power, reactive power, apparent

 power, active energy, reactive energy, energy demand, Current/

Voltage unbalance ratio, energy demand.

Harmonics monitoring indicator

Harmonics (2nd to 127th), including total Voltage/Current harmonic

 distortion ratio, each harmonic ratio, magnitude, phase angle,

active power, reactive power, etc.

Inter-harmonics(1.5 to 126.5)

Voltage flicker quickly (Pst), flicker slowly (Plt), swell, dip, interrupt

 and transient change (optional).

Surging Current (optional, only valid when matching with power

 clamp sensor outside)

Oscillograph, waveshape faults record

Real time display Voltage and Current waveform. Form the Voltage

 waveform and faults record on the occasion of harmonic

component overlimit, harmonic distortion overlimit, R.M.S Voltage

 overlimit, short circuit fault etc.

Parameter record, event alarm

The built-in memory can record all the data that is needed,

with the capacity of 32GB.

Power quality reliability detection

Display power quality detection result



Multi communication protocol

Modbus-RTU,TCP/IP, etc.

Help/guide function

User-friendly

Display and operate function

TFT true color LCD: resolution 640×480,65535 colors; touch

screen and key dual operation mode; wave display support

scaling  operation.

Other functions

Online statistics; GPS synchronization.





Measurement Accuracy



U, I rms value:  0.05%

U, I peak value, peak factor:  2%

Flicker:  5%%

Voltage unbalanced and Current unbalanced:  0.2%

Frequency:  ±0.002Hz

Power factor:  ±0.002

Power:  0.05%%

Energy:  Active energy 0.05% IEC60687:1992(GB/T17883-1999)

        Reactive energy 0.05% IEC61268(1995) (GB/T17882-1999)

Harmonics:   IEC61000-4-30 class A

Inter-harmonics:   IEC61000-4-30 class A





Interface



Smart Single phase Power Quality Analyser For Power Loads 0





Technical Specification



1. Input

a.AC Current input

Input method: Internal Current transformers: 4 channels

Nominal input: 1A~5A rms

Measure scope: 0.001A~7A rms

With power clamp sensor outside: 1A~3000A

Power consumption:≦0.5VA/phase

Overload capacity: 10A continuously, 100A /1s non continuously



b.AC Voltage input

Input method: Internal resistance partial voltage: 4 channels

Nominal input: 100V~750V rms

Measure scope: 0.2V~900V rms

Power consumption:≦0.1VA/phase

Overload capacity:1000V rms continuously,, 6000V/1s non continuously

Frequency scope:50/60 Hz±15%



c.Remote signal input

34 channels remote signal input 24VDC

GPS synchronized port: TTL (B code), 485(B code)



2. Output

a. 16 relay alarm outputs, 10A/250VAC/30VDC

b. Communication port: RS-485 (baud rate: 2400, 4800, 9600, 19200bps)

c. Dual Ethernet: (dual 10M/100M Ethernet)

d. USB



3. Environment

Operation temperature:-20℃~+60℃

Storage temperature:-40℃~+85℃℃

Operation humidity: 5%~95%RH

Sea height: up to 2000m.

Pollution class: Class II

Material of housing: Duralumin

Protection class: IP51



4. Other parameters

Auxiliary power supply: 85-265VAC/DC

Sampling frequency: 20.48k (50Hz)

Sampling resolution: 19 digits

Event detection time:48μs

Data storage capacity: 32GB

Temp. drifting factor:<10PPM/℃.

Withstand Voltage (input against output):3000V/1min (2mA)

Power comsumption: 20VA



5. EMC and safety test

EN61326-1 EN61000-4-2/3/4/5/12

IEC/EN61010-2001



Competitive advantage :


We can follow the Customer-oriented principle, Artel Tech. aims to innovate hi-tech products and provide comprehensive solutions continuously, and continue to offer qualified products and excellent services to its global customers.

Artel's successful strategy is reflected in the number of certifications, including ISO9001 and CE quality system certification, Software Enterprise certificate issued by National Information Department, and hi-tech company certificate issued by government, etc.
