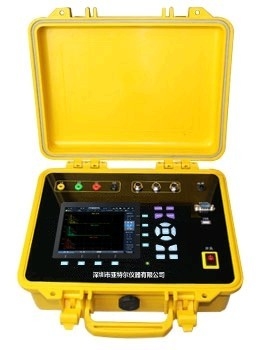

Smart Portable Power Meter Tester / 3 Phase Power Meter Calibration


Large Image :  Smart Portable Power Meter Tester / 3 Phase Power Meter Calibration Get Best Price

Product Details:
Place of Origin: China
Brand Name: Artel
Model Number: AT6012
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: 1 month
Payment Terms: TT
Detailed Product Description
Product Name: Portable Meter Test Equipment Feature: Smart High Voltage
Screen: 5.6’inch, 640×480 Dot-matrix LCD Type: 3-phase
Ethernet: 10M/100M Application: Measure And Analyze Power Quality
High Light:

Portable Appliance Testing Equipment


electricity measuring instruments


Smart Portable Power Meter Tester / 3 Phase Power Meter Calibration





AT6012 is suitable for the power supply company management, energy metering, electricity and

supervision department, technical supervision department, etc.



Main function


With various operation interfaces, AT6012 can measure the voltage, current, frequency, phase, power

factor, active power, reactive power, apparent power of 3P4W and 3P3W;

Real-time measurement and analysis of the harmonic, measurement of 2nd~63rd harmonic amplitude

and distortion is available;

Display real-measurement waveform of each phase;

Calibrate single phase active energy meter, 3P3W active energy meter, 3P4W active energy meter,

single phase reactive energy meter, 3P3W reactive energy meter, 3P4W reactive energy meter;

Vector graphics can be displayed in real time, easy to spot check line, and automatic recognize meter

wiring function. Can identify 3P4W wiring and 3P3W wiring system of the units thru transformer or direct

 measurement, report the results and offer energy correction factor.



Main features:


5.6 inch 640×480 dot matrix LCD, displays operation hint and measured data;

Large capacity lithium battery, continuous working time more than 2 hours;

Standard IEC61000-4-30;

Real time measure and record the basic electric parameters, harmonics, unbalance ratio of

voltage/current, peak voltage;

Recording failure waves and events through various triggering conditions;

Self-protection functions, safe and reliable;

The weight of the main unit is less than 3Kg, compact and lightweight, easy to carry;

Support calibrating by userself.


Technical specification


Voltage measurement


   Direct measurement limit: 57.7V, 100V, 220V, 380V,600V;

   Rated input voltage (3-phase): AC 50-750Vrms;

   Maximum input voltage: 1000Vrms

   Frequency range: 42.5-69Hz;

   Accuracy: 0.05%RG;

   Overload capacity: 1kVAC continuous, 5kV/1s interrupt;

   Dielectric strength: 2.5kVAC,50Hz/1min



AC current measurement


   Direct measurement limit: 0.2, 1A, 5A, 10A;

   Measurement range: range×(0-120)%;

   Accuracy: 0.05%RG;

   Current clamp (optional): 100A, 200A, 500A, 1000A;

   Current clamp measurement accuracy: 0.2%RG



Power measurement


Active power measurement accuracy: cosФ≥0.5, <±0.05%RG;

Reactive power measurement accuracy: sinФ≥0.5, <±0.1%RG;

Current clamp active power measurement accuracy: cosФ≥0.5, <±0.2%RG;

Current clamp reactive power measurement accuracy: sinФ≥0.5, <±0.5%RG



Frequency measurement


Range: 40-70Hz;

Accuracy: ±0.002Hz;



Phase angle measurement


Range: 0.00°-359.99°;

Accuracy: ±0.05°;



Harmonic measurement


Harmonic order: 2nd ~63rd ;



Energy measurement


Active Energy measurement accuracy: cosФ≥0.5, <±0.1%RG;

Reactive Energy measurement accuracy: sinФ≥0.5, <±0.2%RG;

Current clamp active Energy measurement accuracy: cosФ≥0.5, <±0.2%RG;

Current clamp reactive Energy measurement accuracy: sinФ≥0.5, <±0.5%RG;



Energy pulse input


   Pulse constant(r/kWh) setup range of the calibrated meter: 1~9999999999;

   Setup range of calibrate pulse: 1~9999999999;

   Receive the max. pulse frequency: 50KHz;

   Pulse constant setup range: 3.6×107;



Energy pulse output


Energy output pulse constant(r/kWh) setup range: 1~9999999999;

Maximum pulse output frequency: 72KHz;



General parameters:


Power supply:         AC 220V±10% or 100V±10%;

Consumption:         <15W;

Environment condition:  -5℃~55℃;

Humidity:            RH≤85%;

Size:                400mm(L)× 250mm(W)× 150mm(H)

Weight:              3kg
