Product Name: | Electrical Calibrators | Usage: | Calibrate And Test Analog Meter, Digital Meter |
---|---|---|---|
Properties: | High Precision / Smart | Type: | Single Phase / 3 Phase |
Power Supply: | AC Voltage Calibrator | Screen: | 7" Color Touch Screen |
High Light: | calibration electrical test instruments,electrical calibration equipment |
Smart Kwh Electrical Calibrators , Electrical Tester Calibration
Main Features:
Product Profile:

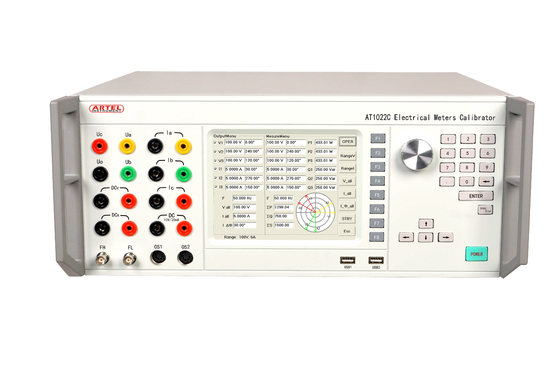

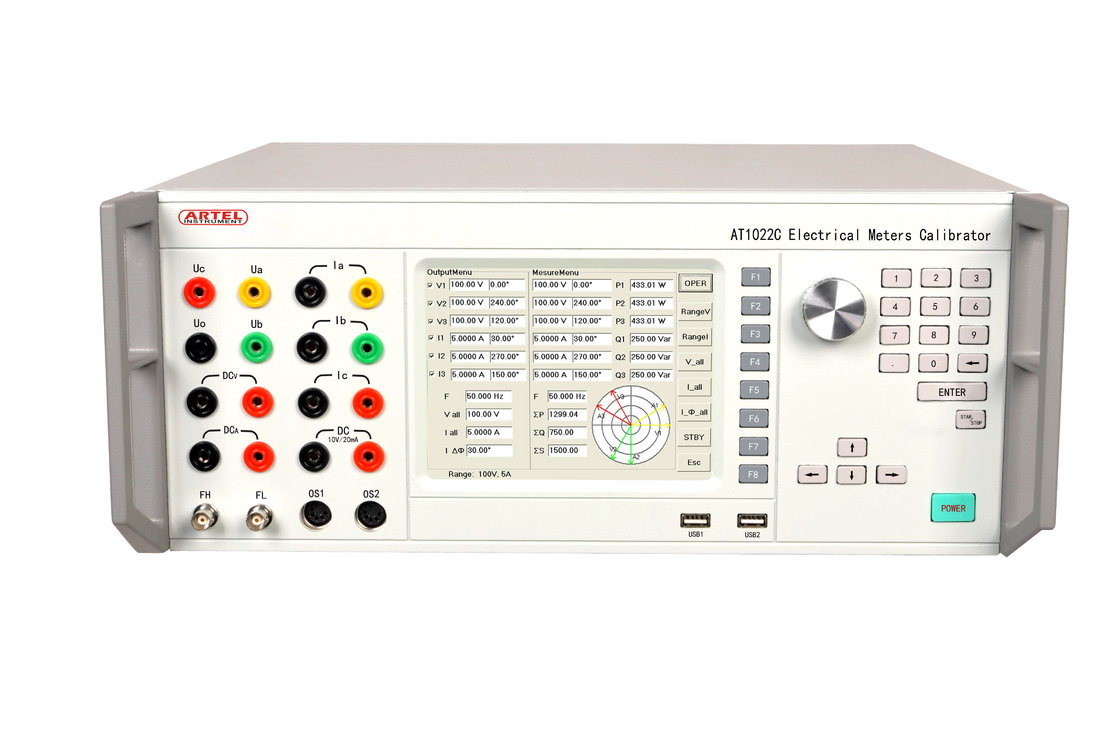

With modular design, AT1022C can calibrate and test analog meter, digital meter, RTU, electrical transducer, energy meter and so on.
Technical Specification
|
Range |
Capacity |
Adjustment Degree |
Adjustment Range |
Stability |
Distortion (linear load) |
Measurement accuracy |
|
AC Voltage |
1Phase: 150mV~ 1000V 3Phase: 57.7V~660V |
20VAmax /phase |
0.01%RG |
0~120%RG ≤1000V |
0.01%RG 3min
|
0.2% CL0.05 0.5% CL0.1 |
±0.05%RG CL0.05 ±0.1%RG CL0.1 |
|
AC Current |
1Phase: 5mA~30A 3Phase: 0.2A~30A |
30VAmax /phase @30A |
0.01%RG |
0~120%RG ≤30A |
0.01%RG 3min
|
0.2% CL0.05 0.5% CL0.1 |
±0.05%RG CL0.05 ±0.1%RG CL0.1 |
|
DC Voltage |
50mV~1000V |
15W (≥30V) |
0.01%RG |
0~120%RG ≤1000V |
0.01%RG 3min |
Ripple ≤1%RG |
±0.05%RG CL0.05 ±0.1%RG CL0.1 |
|
DC Current |
5 mA~30A |
30VAmax @30A |
0.01%RG |
0~120%RG ≤30A |
0.01%RG 3min |
Ripple ≤1%RG |
±0.05%RG CL0.05 ±0.1%RG CL0.1 |
|
Phase |
0.00°~ 359.99° |
|
0.01° |
0.00°- 359.99° |
0.01° |
|
±0.05° |
|
Frequency |
40Hz ~70Hz |
|
0.002Hz |
40Hz - 70Hz |
0.002Hz |
|
±0.003Hz |
|
Power/Energy |
|
|
|
|
|
|
±0.05%RG CL0.05 ±0.1%RG CL0.1 pf≥0.5 |
|
Output Harmonics |
2nd to 63rd |
|
0.01%RG |
≤40% |
|
|
|
|
|
Electrical Level |
No. of Channels |
Capacity |
Others |
||||
Relay Output |
12V,24V |
16 |
Output current 200mA max |
|
||||
Remote Control |
0~5V,0~12V, 0~24V |
16 |
|
|
||||
Pulse Output |
0~5V,0~12V, 0~24V |
1 |
|
0~10kHz adjustable |
||||
Test for Information Response Time |
|
|
|
Error ≤50ms |
Other Parameters
Aux. Power Supply |
AC 220V±15% |
Working Environment |
Environment Temperature 20℃-30℃, Humidity: RH ≤85% |
Dimensions |
500mm(L)×440mm(W)×180mm(H) |
Weight |
|
LCD Size |
7 inch color touch screen |
Competitive advantage :
We can follow the Customer-oriented principle, Artel Tech. aims to innovate hi-tech products and provide comprehensive solutions continuously, and continue to offer qualified products and excellent services to its global customers.
