Product Name: | Digital Panel Meters | Application: | Over Limit Alarm Record Output |
---|---|---|---|
Feature: | Multifunction | Feature: | Multifunction |
Connection: | Single Phase | Installation: | Panel Mounting |
Test Frequency Input: | 45~65Hz | ||
High Light: | analog panel meter,led panel meter |

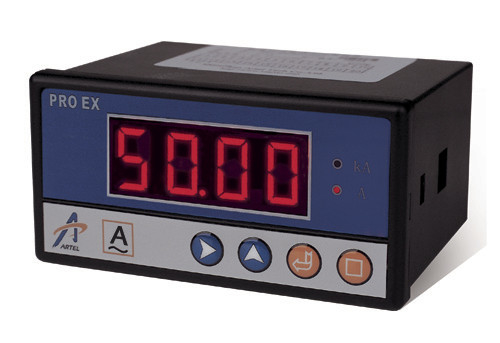

Single Phase LED Digital Panel Meters Over Limit Alarm Record Output
1. Profile
PRO EX digital panel meter is an intelligent instrument that has integrated with modular design of digital display, analog output, RS485, over limit alarm record and relay output. The instrument fulfills GB/T13978-2008, GB/T 13850-1998 standard, GB/T 17626.5-2008, IEC1010 and EN61010 standard.
2. Technical Data
Connection: Single phase
Input: 57.7~600VAC
Test Frequency input: 45~65Hz
Display range: 0-9999Hz
3. Operational principle diagram
4. Wiring diagram
PRO EX F51 Wiring Diagram
5. Other parameters:
Operation temperature: -10℃~55℃
Operation Humidity: ≤ 95% (non-condensing)
Storage temperature: -40℃~85℃;
Storage humidity: ≤ 95%
Dimensional Size: EX51: 48*96*76mm
Installation: Panel mounting.
EX51 Installation size: 46*94mm
