RS485 Multifunction Power Meter

large.img.alt
small.img.alt

Large Image :  RS485 Multifunction Power Meter Get Best Price

Product Details:
Place of Origin: China
Brand Name: Artel
Certification: CE
Model Number: MDM3100S
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Shockproof carton
Delivery Time: 7 days
Payment Terms: TT
Detailed Product Description

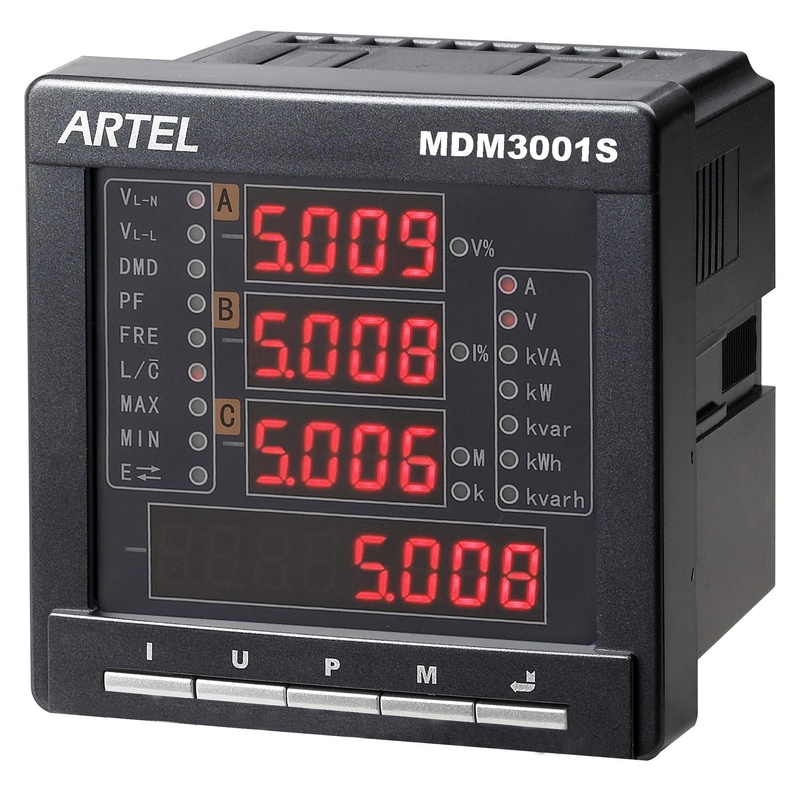

Product Name: Multifunction Power Meter Application: Monitoring The Electrical Parameters
Feature: Energy Management Software Type: Single Phase / 3 Phase
Analog Output: 1 Channel Programmable Dimensional Size: 96 X 96 X 86mm
High Light:

multifunction digital power meter

,

multifunction panel meter



RS485 Multifunction Power Meter



Description



With modular design, MDM3001S has been applied in monitoring the

electrical parameters in single phase, 3 ph 3/4 wire electrical system.





Main features



Measure and analyze real time data, such as U, I, In,P, Q, S, cosΦ,

F, kWh, kvarh, etc.

Built-in RS-485 communication port

2 energy pulse output (active and reactive energy each)

Max/min. data record, and demand record

1 channel programmable analog output (4~20mA or 0~5V, optional)

Multi-tariff function (Max.12 Time slots, optional)

1 channel remote signal input (optional)





Measurement Accuracy



Parameters

Display

Direction

Accuracy

Voltage

0~9999kV



Class0.2

Current

0~9999kA



Class0.2

Power factor

-1~+1

Directional

Class 1

Frequency

45~65Hz



0.01Hz

Active Power

-9999~9999Mw

Directional

Class0.5

Reactive Power

-9999~9999MVAr

Directional

Class0.5

Apparent Power

0~9999MVA



Class0.5

Active Energy

0~9999999.99MWh

Directional

Class 1

Reactive Energy

0~9999999.99MVArh

Directional

Class 2





Technical Specification



Current Input

Input Current:0~5A   (Current value can be set up)

Measurement scope:0.5%~120%In

Overload capacity:2 X rated continuously,100A/1s non continuously

Power consumption:≤0.2VA per phase

Voltage Input

Input Voltage:0~400VAC (L-N),0~693VAC(L-L)(Voltage value can be set up)

System frequency:45~65Hz

Measurement scope:3%~120%Un

Overload Capacity:2 X rated continuous, 2500V/1s non continuous

Power consumption:≤0.5VA per phase

Switch Status (optional)

Input Channels:

Input Type:

Isolated Voltage:

1 channels

Dry contact

2500VAC

Analog Output (optional)

No. of outputs

1 channels programmable

Output signal

4~20mA or 0~5V

Response time

≤400ms

Pulse Output (standard)

No. of outputs

2 channels(active/reactive energy each)

Serial com. Port (standard)

No. of outputs

1 RS-485 port

Communication protocol

Modbus-RTU protocol

Baud rate

2400,4800,9600,19200,38400 bps



Other parameters



Operation temperature:-20℃ ~ +60℃

Storage temperature:-40℃ ~ +85℃

Operation humidity:5~95%RH

Temp. drifting rate: <100ppm/℃

Total power consumption:<5VA

Auxiliary power supply: 24~80VAC/DC, 85~265VAC/DC

Voltage resistance(Input against Output); 2500V/1min.

Material of Housing: Flammability acc. to UL 94V0

Dimensional Size: 96mmX96mmX86mm

Installation Size: 91mmX91mm
