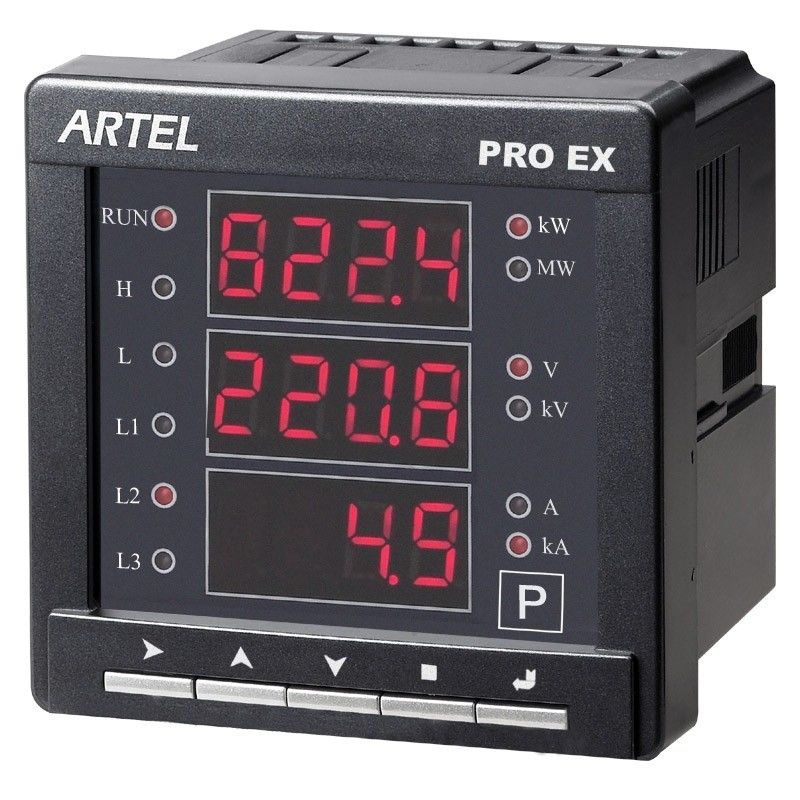

RS485 Digital 3 Phase Panel Meter Instrument Relay Analog EN61010
1. Profile
PRO EX digital panel meter is an intelligent instrument that has integrated with modular design of digital display, analog output, RS485, over limit alarm record and relay output. The instrument fulfills GB/T13978-2008, GB/T 13850-1998 standard, GB/T 17626.5-2008, IEC1010 and EN61010 standard.
2. Technical Data
Connection: 3P
Input Current: 0~5A
CT Scope: 0.1~6500
Frequency: 50/60Hz
Display range: 0~9999kA
3. Wiring Diagram
PRO EX I53 Wiring Diagram
4. Other parameters:
Operation temperature: -10℃~55℃
Operation Humidity: ≤ 95% (non-condensing)
Storage temperature: -40℃~85℃;
Storage humidity: ≤ 95%
Dimensional Size: EX53: 96*96*76mm
Installation: Panel mounting.
EX53 Installation size: 91*91mm
