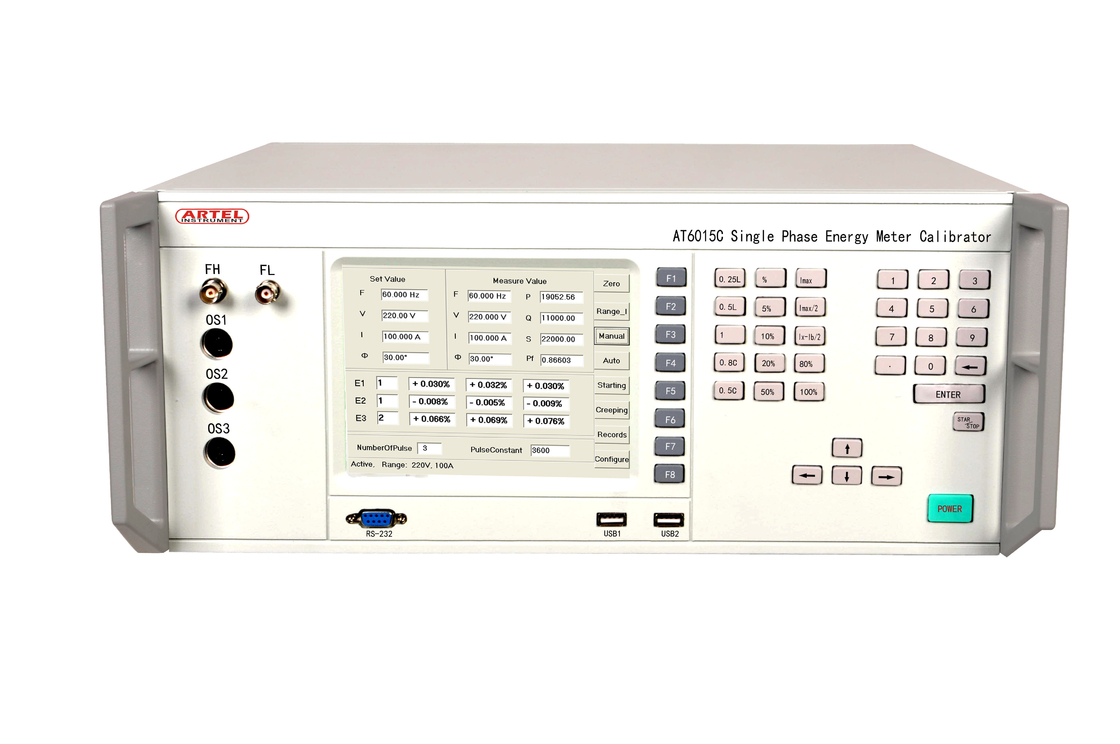

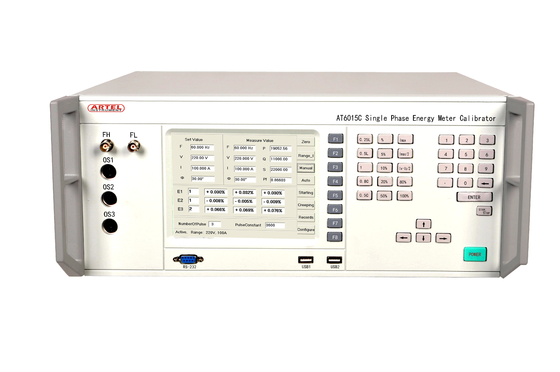

Reactive Power Energy Meter Calibrator

large.img.alt
small.img.alt

Large Image :  Reactive Power Energy Meter Calibrator Get Best Price

Product Details:
Place of Origin: China
Brand Name: Artel
Model Number: AT6015C
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: 1 month
Payment Terms: TT
Detailed Product Description
Product Name: Energy Meter Calibrator Usage: Active / Reactive Power Meter
Feature: Automatic Type: Single Phase
Screen: 7" Color Touch Screen Power Supply: AC 220V±15%
High Light:

energy meter test equipment

,

electric meter measurement


Reactive Power Energy Meter Calibrator

Product Profile:

AT6015C can calibrate single phase active & reactive energy meters


Main Features:


  • Accuracy : U, I, P, kwh: ±0.05%; Q, kvarh : ±0.1%;
  • U, I, P stability : 0.01%RG/3min, AC Voltage and AC Current distortion : ≤0.2%;
  • Current scope: Min. 0.05A, Max. 100A(Max output 120A); Voltage 100V-250V;
  • Export 2nd-21st harmonics;
  • Automatically or single-step manually test basic error, shunt running, start, standard deviation of single phase energy meter;
  • Equipped with RS232 & Ethernet interface, AT6015C can be operated either stand-alone, or controlled by PC;
  • Equipped with barcode gun interface, parameters of tested meters can be easily scanned in;
  • Remotely updating online, easily achieve software updating;
  • Self-protection, alarming and displaying overload location for Source-output overload, Voltage short-circuit, Current open-circuit;
  • Self-diagnosis for amplifier failure and internal module communication failure;
  • Test 3 energy meters with the same model type at one time;
  • Test energy meters with the accuracy of Class 0.2 and below (Class 0.05 equipment);



Technical Specification




Range

Capacity

Adjustment
Degree

Adjustment
Range

Stability

Distortion
(linear load)

Measurement
 accuracy

AC Voltage

 100~250V

30VAmax

0.01%RG

0~120%RG


0.01%RG
3min CL0.05
0.02%RG
3min CL0.1

0.2% CL0.05
0.5% CL0.1

±0.05%RG
CL0.05
±0.1%RG CL0.1

AC Current

 0.05A~100A

100VAmax
@100A

0.01%RG

0~120%RG


0.01%RG
3min CL0.05
0.02%RG
3min CL0.1

0.2% CL0.05
0.5% CL0.1

±0.05%RG
CL0.05
±0.1%RG CL0.1

Phase

0.00°~359.99°



0.01°

0.00°-359.99°

0.01°



±0.05°

Frequency

40Hz ~70Hz



0.002Hz

40Hz -70Hz

0.002Hz



±0.003Hz

Power/Energy













±0.05%RG
CL0.05
±0.1%RG CL0.1
pf≥0.5

Output
Harmonics

2nd to 21st



0.01%RG

≤40%









Other Parameters


Aux. Power Supply

AC 220V±15%

Working Environment

Environment Temperature 20℃-30℃, Humidity:RH ≤85%

Dimensions

440mm(L)× 445mm(W)× 180mm(H)

Weight

18KG

LCD Size

7 inch color touch screen
