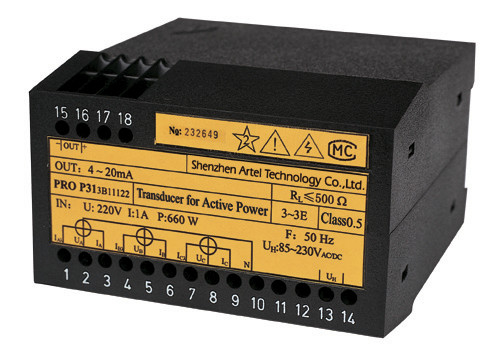

PD32 / QD32 Electrical Transducer

Single Phase 3P4W 380V PRO PD32 / QD32 Electrical Transducer

1. Product Description

Pro Series Transducers for Electrical Quantities, fundamental devices for process automation. All our instruments fulfill all important requirements and regulations concerning electromagnetic compatibility and safe isolation (IEC688-1992 standard and GB/T 13850-1998 standard). The devices have been developed, manufactured and tested in accordance with Quality Assurance System ISO 9001.

2. Technical Specification

Accuracy: Class0.2, 0.5

Auxiliary Power Supply: 85V~265VDC/AC 24V~80VDC/AC

Stability: Annual Change Rate ≤±0.2%

Input Overload Capacity:

Continuous Overload Capacity ≤1.5X

Transient Overload Capacity  Voltage Limit≤3X  Current Limit≤30X

Output:

Constant Voltage Output, Load Resistor    Rext≥250Ω

Constant Current Output, Load Resistor    Rext≤500Ω

Alternating Wave: ≤18mV(Peak-Peak)

Response Time: ≤300ms

Striking Voltage: ≤2.5kV

Operating Temperature: -10℃~+55℃

Storage Temperature: -40℃~+85℃

Relative Humidity of Annual Mean: ≤90%RH

Installation: DIN 35mm Rail

Size: 105mm×69mm×112mm

Guaranty Period: 2 years

3. Technical Data

Input Voltage: 100V, 220V, 380V, 600V

Input Current: 0A~1A, 0A~2A, 0A~5A

Measuring mode:Single phase, 3P3W, 3P4W

Reactive Power Measurement:  Only suit for 3-Phase 3-wire unbalanced system

Power Factor: Active Power COSφ Active Power 0～1(One-Direction) -1～0～1(Bi-direction)

Reactive Power SINφ  Reactive Power 0～1 (One-Direction)-1～0～ 1(Bi-direction)

Output: 4mA~20mA, 4mA~12mA~20mA, 0mA~±20mA, 0mA~±1mA, 0mA~±10mA, 0V~±1V, 0V~±5V,

0V~±10V

4. Wiring

                                    PRO PD/QD32 Wiring diagram (3P3W)
