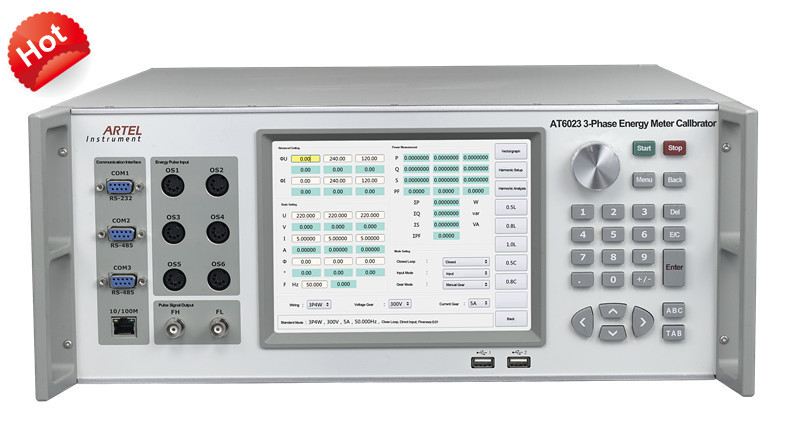

Measuring Electrical Energy Meter Calibrator With Barcode Gun Interface
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Single Phase / 3 Phase | Product Name: | Energy Meter Calibrator |
|---|---|---|---|
| Power Supply: | AC Voltage Calibrator | Screen: | 7" Color Touch Screen |
| Screen: | 7" Color Touch Screen | Voltage: | 57.7V - 660V |
| Interface: | Barcode Gun | ||
| High Light: | calibration electrical test instruments,electrical calibration equipment |
||
Measuring Electrical Energy Meter Calibrator With Barcode Gun Interface
Main Features:
- Remotely updating online, easily achieve software updating;
- Equipped with barcode gun interface, parameters of tested meters can be easily scanned in;
- Accuracy :U, I, P, kwh : ±0.05%; Q, kvarh : ±0.1%;
- Measurement scope: Voltage 57.7V- 660V; Current 1A-50A;
- Equipped with RS232 & Ethernet interface, AT6023C can be operated either stand-alone, or controlled by PC;
- U, I, P stability : 0.01%RG/3min, AC Voltage and AC Current distortion : ≤0.2%;
- Output 2nd-63rd harmonics, and measure & analyze the harmonics;
- 7" color touch screen, interface friendly, easy to operate;
- Automatically or single-step manually test basic error, creep, start, standard deviation of single/three
- phase energy meter, besides, automatically testing can be self-defined by user;
- Automatic Calibration System can be customized according to customer's requirements;
- Exchange the testing settings and testing records thru U disk(or SD card);
- Communicate with tested meters thru RS485, Ethernet, RS232;
- Self-protection, alarming and displaying overload location for Equipment output overload, Voltage
- short-circuit, Current open-circuit;
- Self-diagnosis for Amplifier failure and Internal module communication failure;
- Test energy meters with the accuracy of Class 0.2 and below (Class 0.05 equipment);
Product Profile:
Calibrating and testing multiple types of active & reactive energy meters, AT6023C also can be used as a harmonic power output source.
Accuray 0.05%, Self - Protection Self diagonisis Short - Circuit Overload 3 Phase Energy Meter Calibration AT6023C
Technical Specification
|
|
Range |
Capacity |
Adjustment Degree |
Adjustment Range |
Stability |
Distortion (linear load) |
Measurement Accuracy |
|
AC Voltage |
57.7V~660V |
20VAmax/ phase |
0.01%RG |
0~120%RG
|
0.01%RG 3min CL0.05 0.02%RG 3min CL0.1 |
0.2% CL0.05 0.5% CL0.1 |
±0.05%RG CL0.05 ±0.1%RG CL0.1 |
|
AC Current |
1A~50A |
50VAmax/ phase @50A |
0.01%RG |
0~120%RG
|
0.01%RG 3min CL0.05 0.02%RG 3min CL0.1 |
0.2% CL0.05 0.5% CL0.1 |
±0.05%RG CL0.05 ±0.1%RG CL0.1 |
|
Phase |
0.00°~359.99° |
|
0.01° |
0.00°-359.99° |
0.01° |
|
±0.05° |
|
Frequency |
40Hz ~70Hz |
|
0.002Hz |
40Hz -70Hz |
0.002Hz |
|
±0.003Hz |
|
Power/Energy |
|
|
|
|
|
|
±0.05%RG CL0.05 ±0.1%RG CL0.1 pf≥0.5 |
|
Output Harmonics |
2nd to 63rd |
|
0.01%RG |
≤40% |
|
|
|
Other Parameters
|
Aux. Power supply |
AC 220V±15% |
|
Working Environment |
Environment Temperature 20℃-30℃, Humidity:RH ≤85% |
|
Dimensions |
500mm(L)×440mm(W)×155 mm(H) |
|
Weight |
22KG |
|
LCD Size |
7 inch color touch screen |
Competitive advantage :
We can follow the Customer-oriented principle, Artel Tech. aims to innovate hi-tech products and provide comprehensive solutions continuously, and continue to offer qualified products and excellent services to its global customers.
Artel's successful strategy is reflected in the number of certifications, including ISO9001 and CE quality system certification, Software Enterprise certificate issued by National Information Department, and hi-tech company certificate issued by government, etc.
