LCD 5A Motor Protection Relay

large.img.alt
small.img.alt

Large Image :  LCD 5A Motor Protection Relay Get Best Price

Product Details:
Place of Origin: China
Brand Name: Artel
Model Number: M60-2P
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: 1 month
Payment Terms: TT
Detailed Product Description
High Light:

motor protection circuit

,

distance protection relay

Programmable Recording LCD 5A Motor Protection Relay





Profile

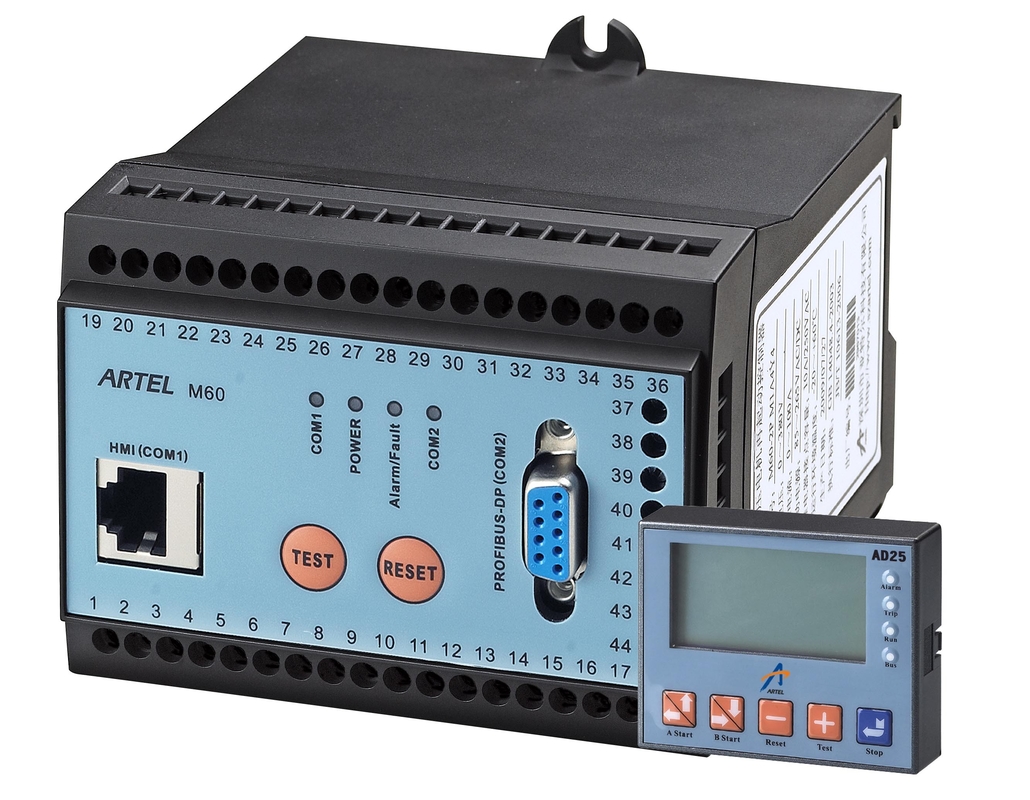

M60 protection controller is designed to provide full-scale protections and controls of low-voltage asynchronous motor and increasing safety motor rated below 800A, 50Hz, 380VAC. M60 measures the electrical parameters of motors, operates and controls the motors ,and equipped with the history record management and remote communication function.

M60 products portfolio: standard M60-1S and M60-3S, popular M60-2M and integrated M60-2P. With different infrastructure, installation, and functions, these four types of protector controllers can meet different requirements of customers in low-voltage protection area.





Features



Variety of product portfolio to suit customers' needs

Recording function to record the instant data before and after the faults for fault analysis purpose

Flexible protection functions configuration to ensure the safe and continuous production

Automatic software and hardware inspection to increase the stability and reliability

Remote or local operation on parameters setup, motor start, stop, and reset

Detection on the motor start status automatically to avoid malfunction

Configured with large size LCD panel for on-site operation (optional)



Technical Specification of M60-2P

Input (M60-2P)

Input Current: 1A, 6.3A, 25A, 100A, 250A, 500A, 800A

Input Voltage: 380VAC/50Hz

Remote digital signal input: 11 channels (dry contact)



Output (M60-2P)

RS-485 output: 2 channels

Analog output: 2 channels (4-20mA or 0-5V)

Relay output: 6 channels (dry contact)

Contact capacity of control output relay: 10A/250VAC

Contact capacity of alarm output relay: 5A/250VAC



Measurement Record (M60-2P)

Accuracy: U, I, F class 0.5

Accuracy: cosΦ, P, Q class 1

Accuracy: Ep class 2

Accumulated operating time on record (Max.): 65535 hours



Size & Weight: (M60-2P)

Installation (M60-2P): 35mm Din rail, with 4 M4 bolts to support

Installation (CT): with 4 M4 bolts to support

Dimensional size (M60-2P): 82mmX100mmX106mm

Operating panel size: 76mmX61mmX28mm

Weight: 450g(not including CT)

Remark: The size and weight of CT is decided by input current.



Restart function after Voltage Fluctuation (M60-2P)

Voltage fluctuation allowing time: 0.1-25.5S

Restart delay time: 0.1-25.5S

Time adjustment step: 0.1S

Lower Voltage setup scope:80%-89%Ue





Environment:

Auxiliary power supply: 85~265VAC/DC

Total power consumption: <8VA(M60-2P )

Operation temperature: -20℃ ~ +60℃

Storage temperature: -40℃ ~ +85℃

Operation humidity: <90%RH

Storage humidity: <95%RH





Protection Function:



Function

Status

Item

Content

M60-1S

M60-2S

M60-2M

M60-2P

Overtime start

protection

Programmable

Allowed startup time

0-80s

Yes

Yes

Yes

Yes

Protection method

2

Short circuit

 protection

Programmable

Fault setting range

4-12le

Yes

Yes

Yes

Yes

Execution delay time

0.1-0.5s

Protection method

0, 2

Locked rotor

protection

Programmable

Fault setting range

200-950%le

Yes

Yes

Yes

Yes

Warning setting range

150-255%le

Execution delay time

0.1-25.5s

Protection method

0, 1, 2, 4

Underload

 protection

Programmable

Setting range

20-95%le

Yes

Yes

Yes

Yes

Execution delay time

0.1-60s

Protection method

0, 1, 2, 3

Overload

protection

Programmable

Setting range

105-150%le

Yes

Yes

Yes

Yes

Execution delay time

0.1-250s

Protection method

0, 1, 2, 3, 4

Thermal by

 overload

Must

Setting range

1-105%θb

Yes

Yes

Yes

Yes

Protection method

4

tE time protection

(Increased Safty Motor)

Programmable

tE time

1.0-15s

Yes

Yes

Yes

Yes

Protection method

4

Unbalance protection

(phase failure)

Programmable

Setting range

10%-60%

Yes

Yes

Yes

Yes

Execution delay time

0.1-30s

Protection method

0, 2, 4

Over power

 protection

Programmable

Setting range

101-120%Pe





Yes

Yes

Execution delay time

0.1-200s

Protection method

0, 1, 2, 3

Under power

protection

Programmable

Setting range

30-80%Pe





Yes

Yes

Execution delay time

0.1-200s

Protection method

0, 1, 2, 3

Over power

factor protection

Programmable

Setting range

0.01-1.00





Yes

Yes

Execution delay time

0.1-25.5s

Protection method

0, 1, 2, 3

Under power

factor protection

Programmable

Setting range

0.01-1.00





Yes

Yes

Execution delay time

0.1-25.5s

Protection method

0, 1, 2, 3

Phase reversal

protection

Porgrammable

Execution delay time

0.1-25.5s





Yes

Yes

Protection method

0, 2

Under voltage

 protection

Programmable

Setting range

45-95%Ue





Yes

Yes

Execution delay time

0.1-200s

Protection method

0, 1, 2, 3

Over voltage

 protection

Programmable

Setting range

101-120%Ue





Yes

Yes

Execution delay time

0.1-200s

Protection method

0, 1, 2, 3

Leakage Current

 protection

Programmable

Setting range

10-500mA





Yes

Yes

Execution delay time

0.1-5s

Protection method

0, 1, 2

Overheat

protection

Programmable

Execution delay time

0.5s







Yes

Protection method

0, 2

Interlock

protection

Programmable

Execution delay time

0.1-60s

Yes

Yes

Yes

Yes

Protection method

2

Connection to

 ground protction

Programmable

Setting range

10-100%Ie

Yes

Yes

Yes

Yes

Execution delay time

0.1-5s

Protection method

0, 2





M60-1S

M60-3S

M60-2M

M60-2P

Control function

Direct start





LCD 5A Motor Protection Relay 0

LCD 5A Motor Protection Relay 0

Reversing start







LCD 5A Motor Protection Relay 0

Y-△Start







LCD 5A Motor Protection Relay 0

Lower Voltage start







LCD 5A Motor Protection Relay 0

Restart motors caused by Voltage fluctuation





LCD 5A Motor Protection Relay 0

LCD 5A Motor Protection Relay 0

Emergency fault output





LCD 5A Motor Protection Relay 0

LCD 5A Motor Protection Relay 0

Local/remote command of start, stop





LCD 5A Motor Protection Relay 0

LCD 5A Motor Protection Relay 0

Measurement function

Operating Current

LCD 5A Motor Protection Relay 0

LCD 5A Motor Protection Relay 0

LCD 5A Motor Protection Relay 0

LCD 5A Motor Protection Relay 0

Unbalanced Current ratio

LCD 5A Motor Protection Relay 0

LCD 5A Motor Protection Relay 0

LCD 5A Motor Protection Relay 0

LCD 5A Motor Protection Relay 0

Voltage, frequency, power, power factor,leakage current





LCD 5A Motor Protection Relay 0

LCD 5A Motor Protection Relay 0

No. of contact executions





LCD 5A Motor Protection Relay 0

LCD 5A Motor Protection Relay 0

Status of contacts





LCD 5A Motor Protection Relay 0

LCD 5A Motor Protection Relay 0

Record Function

Latest 10 start/stop record





Clock

Clock

Latest 10 alarm record

No clock

No clock

Clock

Clock

Latest 10 trip record

No clock

No clock

Clock

Clock

Latest 10 restart record caused by Voltage fluctuation





Clock

Clock

Max. and min. parameters records in the protection execution

LCD 5A Motor Protection Relay 0

LCD 5A Motor Protection Relay 0

LCD 5A Motor Protection Relay 0

LCD 5A Motor Protection Relay 0

Accumulated operating time of motor

LCD 5A Motor Protection Relay 0

LCD 5A Motor Protection Relay 0

LCD 5A Motor Protection Relay 0

LCD 5A Motor Protection Relay 0

Communication Function

RS-485 com. Port

LCD 5A Motor Protection Relay 0

LCD 5A Motor Protection Relay 0

LCD 5A Motor Protection Relay 0

LCD 5A Motor Protection Relay 0

Modbus protocol

LCD 5A Motor Protection Relay 0

LCD 5A Motor Protection Relay 0

LCD 5A Motor Protection Relay 0

LCD 5A Motor Protection Relay 0

Profibus protocol







LCD 5A Motor Protection Relay 0





Remark:



M60-3S performs the same function as M60-1S, except that M60-3S has built-in CT, M60-1S has exterior

CT with 5A input.





Competitive advantage :


We can follow the Customer-oriented principle, Artel Tech. aims to innovate hi-tech products and provide comprehensive solutions continuously, and continue to offer qualified products and excellent services to its global customers.

Artel's successful strategy is reflected in the number of certifications, including ISO9001 and CE quality system certification, Software Enterprise certificate issued by National Information Department, and hi-tech company certificate issued by government, etc.
