Profile

AT 2000 is suitable for electric meter and transducer manufacturer to test, produce and inspect the

product, so as to improve production efficiency and reduce production cost.

Main function

Auto-calibrate and test electric meters;

Test AC/DC electric transducer;

Fast and efficient calibration and inspection in production thru special tools;

Each calibrating data can be exported as excel table, easy to record and save;

Customize various protection functions of intelligent meter according users’ requests.

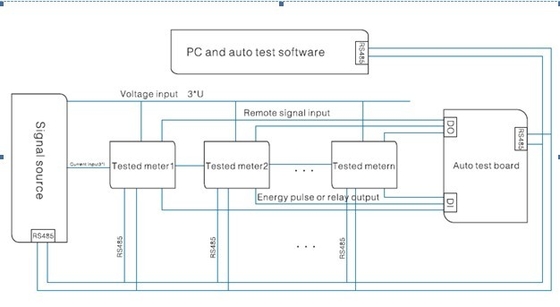

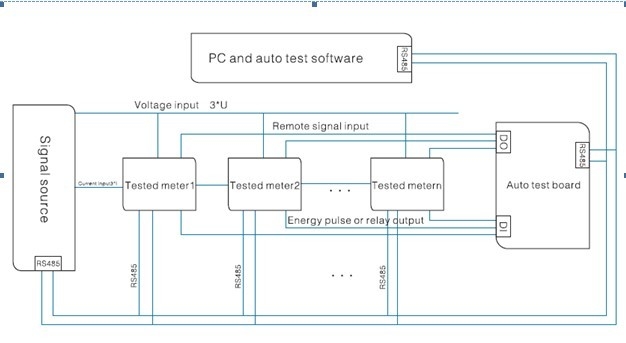

Testing system

Signal source

AT3011, AT1022 can be used as standard source to output Voltage/ Current signal, and the signal output capacity can be customized.

Input/ output board

Special I/O signal, analog 0~5V/4~20mA input/output signal inspection.

Tooling rack

Clamp and fix tested unit fast, improve production and inspection efficiency; test 8 units one time (the quantity depends on user’s requirement and power of tested loop).

Auto calibration and test software

Computer requirement: CPU P31G, memory 512M, hard disk 80G, Windows XP system.

Calibration mode: The software chooses the internal calibrating scheme or customized scheme to check and test intelligent meter according to certain method and sequence.

Inspection mode: The software chooses the internal calibrating scheme or customized scheme and follow certain method and sequence, manually or automatically test meter, and then export test result and report according to internal test standard (can be set and modify) and reference standard meter.
