Product Name: | Power Meter Calibrator | Usage: | Electric Utility Instrument |
---|---|---|---|
Environment Temperature: | 20℃-30℃ | Type: | Single Phase |
Screen: | 7" Color Touch Screen | Power Supply: | AC 220V±15% |
High Light: | power meter test equipment,power meter measurement |
Electric Power Standard Instrument Export 2nd-21st Harmonics
Product Profile:

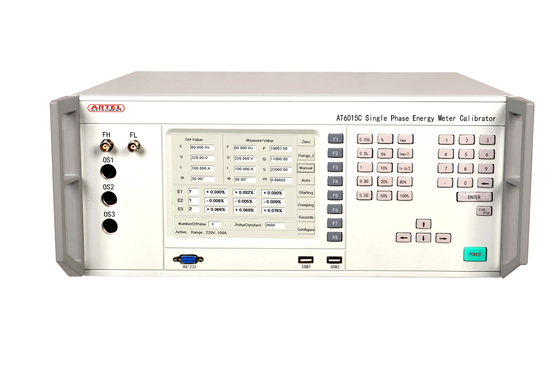

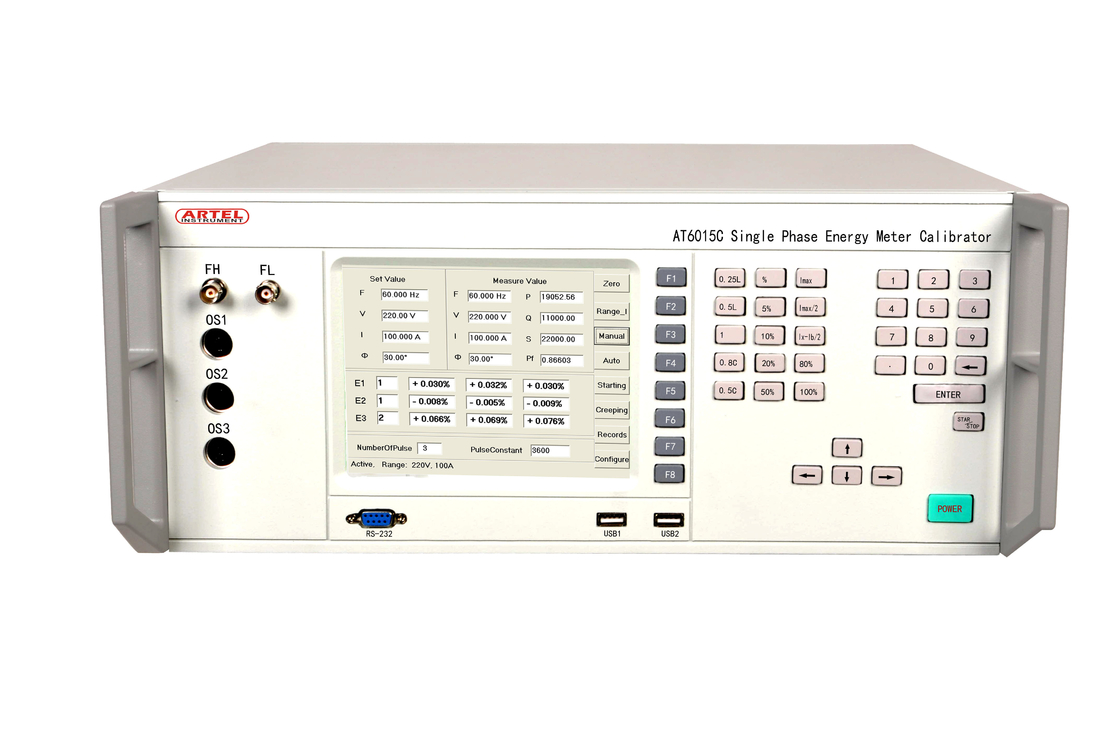

AT6015C can calibrate single phase active & reactive energy meters
Main Features:
Technical Specification
| Range | Capacity | Adjustment | Adjustment | Stability | Distortion | Measurement |
AC Voltage | 100~250V | 30VAmax | 0.01%RG | 0~120%RG | 0.01%RG | 0.2% CL0.05 | ±0.05%RG |
AC Current | 0.05A~100A | 100VAmax | 0.01%RG | 0~120%RG | 0.01%RG | 0.2% CL0.05 | ±0.05%RG |
Phase | 0.00°~359.99° |
| 0.01° | 0.00°-359.99° | 0.01° |
| ±0.05° |
Frequency | 40Hz ~70Hz |
| 0.002Hz | 40Hz -70Hz | 0.002Hz |
| ±0.003Hz |
Power/Energy |
|
|
|
|
|
| ±0.05%RG |
Output | 2nd to 21st |
| 0.01%RG | ≤40% |
|
|
|
Other Parameters
Aux. Power Supply | AC 220V±15% |
Working Environment | Environment Temperature 20℃-30℃, Humidity:RH ≤85% |
Dimensions | 440mm(L)× 445mm(W)× 180mm(H) |
Weight | 18KG |
LCD Size | 7 inch color touch screen |
Competitive advantage :
We can follow the Customer-oriented principle, Artel Tech. aims to innovate hi-tech products and provide comprehensive solutions continuously, and continue to offer qualified products and excellent services to its global customers.
Artel's successful strategy is reflected in the number of certifications, including ISO9001 and CE quality system certification, Software Enterprise certificate issued by National Information Department, and hi-tech company certificate issued by government, etc.
