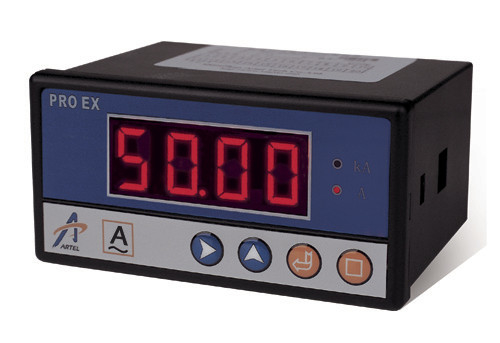

Digital Active Power LED Panel Meter EN61010 RS485 Single Phase

1. Profile

PRO EX digital panel meter is an intelligent instrument that has integrated with modular design of digital display, analog output, RS485, over limit alarm record and relay output. The instrument fulfills GB/T13978-2008, GB/T 13850-1998 standard, GB/T 17626.5-2008, IEC1010 and EN61010 standard.

2. Technical Data

Connection: Single phase

V input: 57.7~600VAC

I input: 0~ 5A

CT scope: 0.1 ~ 6500

PT scope: 0.1 ~ 6500

3. Operational principle diagram

4. Wiring diagram

                   PRO EX P51 (Single) Wiring Diagram

5. Other parameters:

Operation temperature: -10℃~55℃

Operation Humidity: ≤ 95% (non-condensing)

Storage temperature: -40℃~85℃;

Storage humidity: ≤ 95%

Dimensional Size: EX51: 48*96*76mm

Installation: Panel mounting.

EX51 Installation size: 46*94mm
