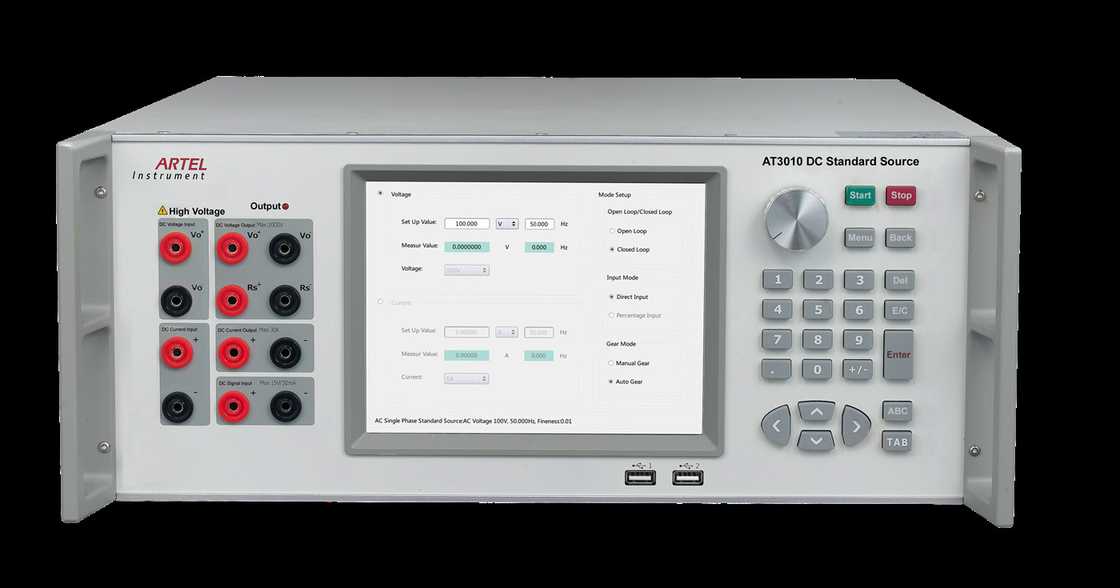

DC Source Power Power Meter Tester Current transducer Class 0.05


Large Image :  DC Source Power Power Meter Tester Current transducer Class 0.05 Get Best Price

Product Details:
Place of Origin: China
Brand Name: Artel
Model Number: AT3010
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: 1 month
Payment Terms: TT
Detailed Product Description
Product Name: DC Standard Source Application: Analog And Digital DC/AC Voltage Meter
Feature: Modular Design, Strong Anti–interference Ability Connection Usage: National Measurement Institution
Screen: 8 Inch Color Touch Screen Power Supply: 90-265VAC/DC
High Light:

portable testing equipment


Portable Appliance Testing Equipment


DC Source Power Power Meter Tester Current transducer Class 0.05





AT3010 is suitable for test, production and inspection in research institution, national measurement

institution at all levels, and meter manufacturer.


Main functions:


Test analog and digital DC/AC Voltage meter, Current meter, and energy meter.

Test DC Voltage transducer and Current transducer.


Main features:


Modular design, strong anti – interference ability, AT3010 can be used for interference test of static electricity, EMC and so on.

8 inch color touch screen, interface friendly, easy to operate.

Equipped with RS232, Ethernet, and WiFi interface, AT3010 can either support stand-alone operation, PC control or handy wireless terminal control.

Communicate with tested meter thru RS-232/485;

Customize Auto-calibration and inspection system of meters;

Self-protection, alarming and displaying overload location for equipment output overload, Voltage short-circuit, Current open-circuit;

Automatically detect, diagnose and alarm the failure;

Remotely updating online, easily achieve software update;

Support calibrating by userself.





AT3010C Standard Source, Class 0.05


Technical specification


DC Voltage output

Range (4 wires): 100mV, 300 mV, 1V, 5 V, 20V;

Range (2 wires): 100V, 300V, 1000V;

Adjustment Range: (0~120) %RG; 1000V: (0~110) %RG;

Adjust resolution: 0.01%RG, 0.1%RG, 1%RG, and 10% RG for option;

Stability: 0.005%/2min;

Ripple amplitude: ≤1%;

Output load: 30V and upper gears: ≥10mA; 7.5V and below gears: ≥25mA;

Measurement accuracy: 0.05%RG;


DC Current Output

Range: 1mA, 3mA, 10mA, 30mA, 100mA, 300mA, 1A, 5A, 10A, 15A, 25A;

Adjustment Range: (0~120) %RG;

Adjust resolution: 0.01%RG, 0.1%RG, 1%RG, 10% RG;

Stability: 0.005%/1min;

Ripple resolution: ≤1%RG;

Output load:  25A: 25VA, other ranges: ≥2V; 200mA and below ranges: ≥15V;

Measurement accuracy: 0.05%RG;


DC energy

DC energy basic error limit: 0.05%RD

DC Voltage measurement

Range: 75mV, 100 mV, 300mV, 1V, 3V, 10V, 30V, 100V, 300V, 100V, automatically switch ranges;

Stability: 0.005%/1min (Class 0.05), 0.01%/1min (Class 0.1);

Basic error limit: 0.02%RG;

Ripple measuring error: ±(5%RD + 0.1%), RD refer to ripple measured value;

Resolution: 0.001%RG;


 DC Current measurement

Range: 2mA, 20mA, 200mA; 1A, 5A, 10A, 30A, automatically switch ranges;

Stability: ≤100ppm/year;

Basic error limit: 0.02%RG (2mA~1A), others: 0.1%RG;

Ripple measuring error: ±(5%RD + 0.1%), RD refer to ripple measured value;

Resolution: 0.001%RG;


Other parameters:

Power supply:            90-265VAC/DC

Power frequency:        50Hz~60Hz

Power consumption:    50VA

Environment condition:    20℃~30℃, Humidity: RH≤85%

Storage environment:      -20℃~50℃

Size:                   600mm(L)× 440mm(W)× 176mm(H)

Weight:             15kg
