Custom Electrical Calibrators For Reactive Energy Meters AC 220V


Custom Electrical Calibrators For Reactive Energy Meters AC 220V


Main Features:


• Accuracy : U, I, P, kwh: ±0.05%; Q, kvarh : ±0.1%;
• U, I, P stability : 0.01%RG/3min, AC Voltage and AC Current distortion : ≤0.2%;
• Current scope: Min. 0.05A, Max. 100A(Max output 120A); Voltage 100V-250V;
• Export 2nd-21st harmonics;
• Automatically or single-step manually test basic error, shunt running, start, standard deviation of single phase energy meter;
• Equipped with RS232 & Ethernet interface, AT6015C can be operated either stand-alone, or controlled by PC;
• Equipped with barcode gun interface, parameters of tested meters can be easily scanned in;
• Remotely updating online, easily achieve software updating;
• Self-protection, alarming and displaying overload location for Source-output overload, Voltage short-circuit, Current open-circuit;
• Self-diagnosis for amplifier failure and internal module communication failure;
• Test 3 energy meters with the same model type at one time;
• Test energy meters with the accuracy of Class 0.2 and below (Class 0.05 equipment);



Product Profile:

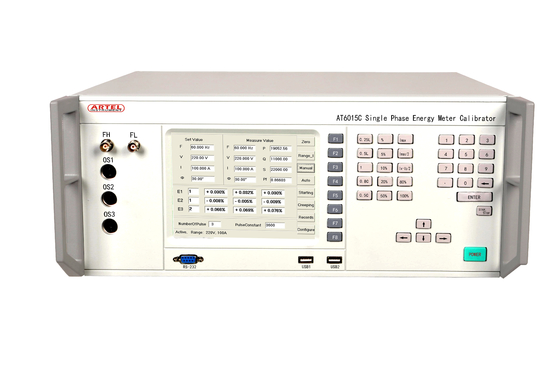

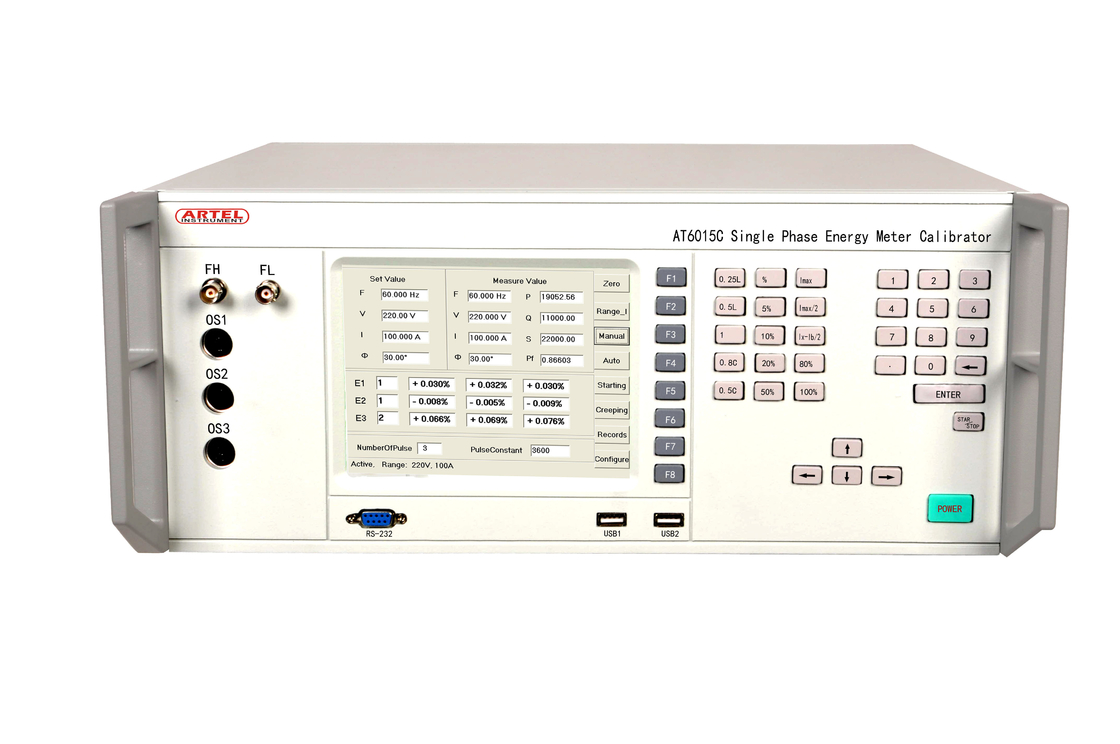

AT6015C can calibrate single phase active & reactive energy meters


Technical Specification




Other Parameters




Competitive advantage :
We can follow the Customer-oriented principle, Artel Tech. aims to innovate hi-tech products and provide comprehensive solutions continuously, and continue to offer qualified products and excellent services to its global customers.
Artel's successful strategy is reflected in the number of certifications, including ISO9001 and CE quality system certification, Software Enterprise certificate issued by National Information Department, and hi-tech company certificate issued by government, etc.
