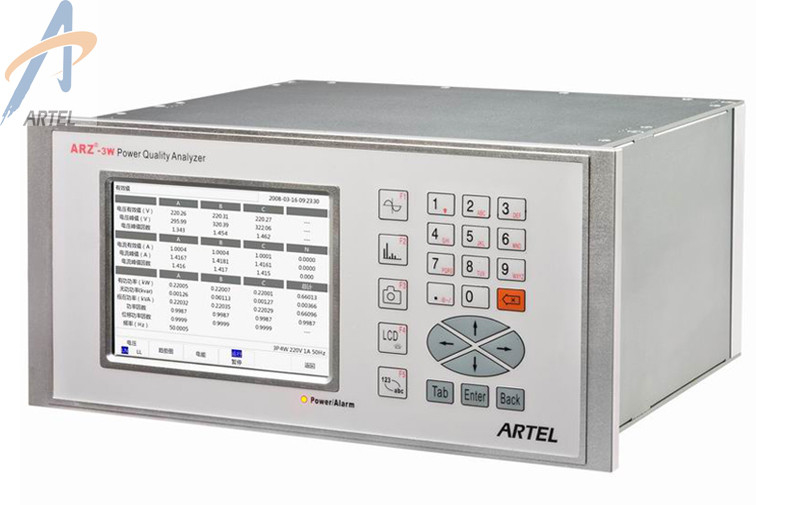

AC / DC Power Quality Analyzer For Disturbance Analysis , Faults Analysis

AC / DC Power Quality Analyzer For Disturbance Analysis , Faults Analysis





Product Profile



ARZ®-3W fulfils all the important requirements of IEC 61000-4-30 Class A standard.

ARZ®-3W power quality analyzer is an integrated monitoring, analyzing and controlling device that offers electrical parameter metering, harmonics metering and analysis, waveform sampling, measurement of Voltage swell, dip, interrupt, Voltage unbalanced ratio, demand, fault record, event record, data record. ARZ®-3W can monitor and detect if the power quality fulfills IEC and EN standard.

ARZ®-3W can work with our power quality monitoring and management software to provide energy management solutions for enterprises. With its strong networking capability, ARZ®-3W can display and record all the data records on the interactive trend chart. A data report can be formed periodically. The report can be used for fault analysis, statistics, real time monitoring purpose.





Application



>Power quality detection and management

>Disturbance analysis, faults analysis, device pre-maintenance

>Long term record and analysis

>Power loads analysis

>Energy consumption evaluation and analysis

>Utilizing GPS synchronization to analyze the relevance between events in different locations

>Applied scope: Single phase and 3phase electrical power system





Main functions



Measured scope	1P2W,3P3W,3P4W,3P5W  programmable
Basic parameters measurement:	Voltage, Current (including, negative, zero sequence Current),  frequency, power factor, active power, reactive power, apparent  power, active energy, reactive energy, energy demand, Current/ Voltage unbalance ratio, energy demand.
Harmonics monitoring indicator	Harmonics (2nd to 127th), including total Voltage/Current harmonic  distortion ratio, each harmonic ratio, magnitude, phase angle,  active power, reactive power, etc. Inter-harmonics(1.5 to 126.5) Voltage flicker quickly (Pst), flicker slowly (Plt), swell, dip, interrupt  and transient change (optional). Surging Current (optional, only valid when matching with power  clamp sensor outside)
Oscillograph, waveshape faults record	Real time display Voltage and Current waveform. Form the Voltage  waveform and faults record on the occasion of harmonic  component overlimit, harmonic distortion overlimit, R.M.S Voltage  overlimit, short circuit fault etc.
Parameter record, event alarm	The built-in memory can record all the data that is needed,  with the capacity of 32GB.
Power quality reliability detection	Display power quality detection result
Multi communication protocol	Modbus-RTU,TCP/IP, etc.
Help/guide function	User-friendly
Display and operate function	TFT true color LCD: resolution 640×480,65535 colors; touch  screen and key dual operation mode; wave display support  scaling  operation.
Other functions	Online statistics; GPS synchronization.





Measurement Accuracy



U, I rms value:  0.05%

U, I peak value, peak factor:  2%

Flicker:  5%％

Voltage unbalanced and Current unbalanced:  0.2%

Frequency:  ±0.002Hz

Power factor:  ±0.002

Power:  0.05%％

Energy:  Active energy 0.05% IEC60687:1992(GB/T17883-1999)

        Reactive energy 0.05% IEC61268(1995) (GB/T17882-1999)

Harmonics:   IEC61000-4-30 class A

Inter-harmonics:   IEC61000-4-30 class A





Interface







Technical Specification



1. Input

a.AC Current input

Input method: Internal Current transformers: 4 channels

Nominal input: 1A~5A rms

Measure scope: 0.001A~7A rms

With power clamp sensor outside: 1A~3000A

Power consumption:≦0.5VA/phase

Overload capacity: 10A continuously, 100A /1s non continuously



b.AC Voltage input

Input method: Internal resistance partial voltage: 4 channels

Nominal input: 100V~750V rms

Measure scope: 0.2V~900V rms

Power consumption:≦0.1VA/phase

Overload capacity:1000V rms continuously,, 6000V/1s non continuously

Frequency scope:50/60 Hz±15%



c.Remote signal input

34 channels remote signal input 24VDC

GPS synchronized port: TTL (B code), 485(B code)



2. Output

a. 16 relay alarm outputs, 10A/250VAC/30VDC

b. Communication port: RS-485 (baud rate: 2400, 4800, 9600, 19200bps)

c. Dual Ethernet: (dual 10M/100M Ethernet)

d. USB



3. Environment

Operation temperature:-20℃~+60℃

Storage temperature:-40℃~+85℃℃

Operation humidity: 5%~95%RH

Sea height: up to 2000m.

Pollution class: Class II

Material of housing: Duralumin

Protection class: IP51



4. Other parameters

Auxiliary power supply: 85-265VAC/DC

Sampling frequency: 20.48k (50Hz)

Sampling resolution: 19 digits

Event detection time:48μs

Data storage capacity: 32GB

Temp. drifting factor:<10PPM/℃.

Withstand Voltage (input against output):3000V/1min (2mA)

Power comsumption: 20VA



5. EMC and safety test

EN61326-1 EN61000-4-2/3/4/5/12

IEC/EN61010-2001
