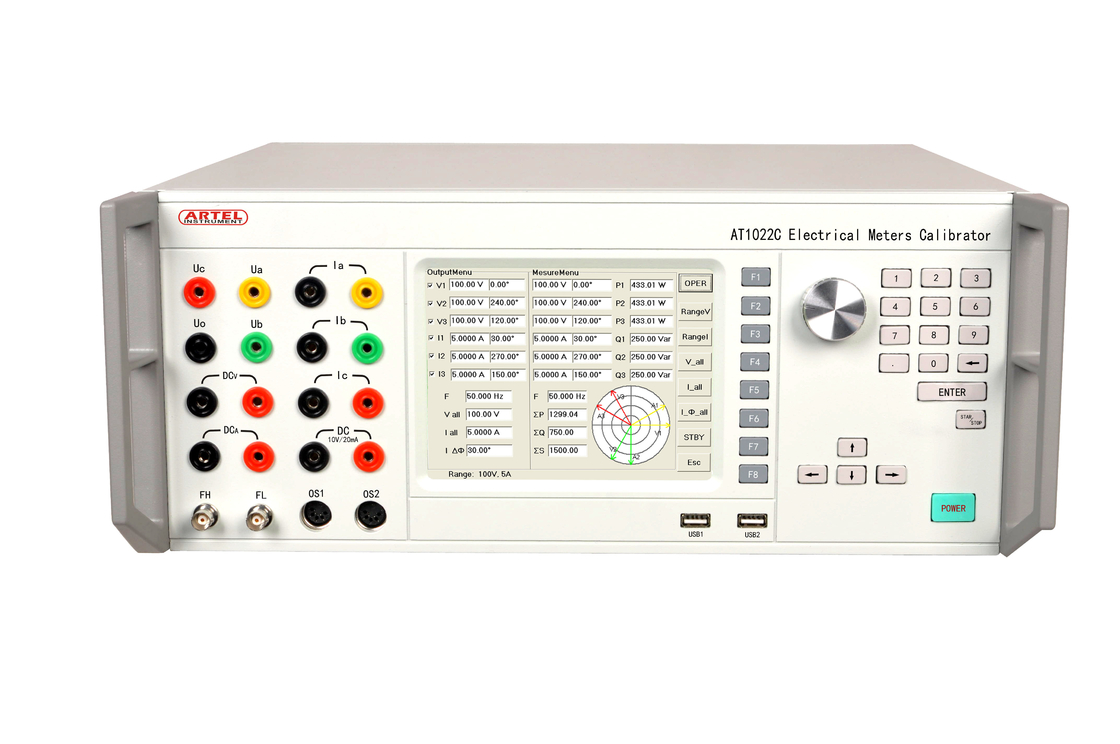

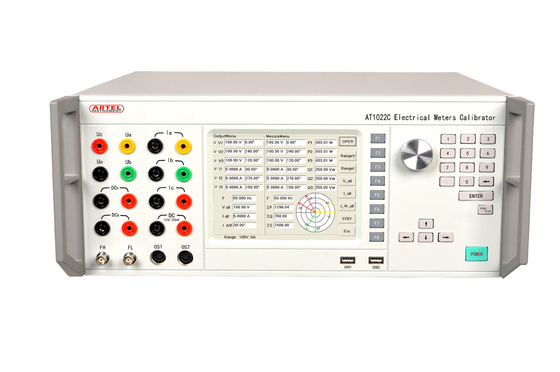

7" Touch Screen Electrical Calibrators

large.img.alt
small.img.alt

Large Image :  7" Touch Screen Electrical Calibrators Get Best Price

Product Details:
Place of Origin: China
Brand Name: Artel
Model Number: AT1022C
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: 1 month
Payment Terms: TT
Detailed Product Description
Product Name: Electrical Calibrators Usage: Calibrate And Test Analog Meter, Digital Meter
Properties: Automatic / Multifunction Type: Single Phase / 3 Phase
Power Supply: AC Voltage Calibrator Screen: 7" Color Touch Screen
High Light:

calibration electrical test instruments

,

electrical test equipment



7" Touch Screen Electrical Calibrators



Product Profile:



With modular design, AT1022C can calibrate and test analog meter, digital meter, RTU, electrical transducer, energy meter and so on.





Main Features:



  • Accuracy: U, I, P, Kwh: ±0.05%; Q, Kvarh : ±0.1%;
  • U, I, P stability: 0.01%RG/3min; Distortion of AC Voltage and AC Current: ≤0.2%;
  • Measurement Scope:
  • AC Voltage: 150mV-1000V (Single phase), 57.7V-660V (3 phase);
  • AC Current: 5mA-30A (Single phase), 0.2A-30A (3 Phase);
  • DC Voltage: 50mV-1000V; DC Current: 5mA-30A
  • Export 2nd-63rd harmonics, and measure & analyze the harmonics;
  • With relay output and pulse output, AT1022C can remotely control the tests of indication and information response time;
  • 7" color touch screen, interface friendly, easy to operate;
  • Equipped with RS232 & Ethernet interface, AT1022C can be operated either stand-alone, or controlled by PC;
  • Automatic Calibration System can be customized according to customer's requirements;
  • Exchange the testing settings and testing records thru U disk (or SD card);
  • Remotely updating online, easily achieve software updating;
  • Equipped with barcode gun interface, parameters of tested meters can be easily scanned in;
  • Communicate with tested meters thru RS485, Ethernet, RS232;
  • Self-protection, alarming and displaying overload location for equipment output overload, Voltage short-circuit, Current open-circuit;
  • Self-diagnosis for amplifier failure and internal module communication failure;
  • Test energy meters with the accuracy of Class 0.2 and below (Class 0.05 equipment);





Technical Specification





Range

Capacity

Adjustment

Degree

Adjustment

Range

Stability

Distortion

(linear load)

Measurement

accuracy

AC Voltage

1Phase:

150mV~1000V

3Phase:

 57.7V~660V

20VAmax/

phase

0.01%RG

0~120%RG

≤1000V

0.01%RG

3min



0.2% CL0.05

0.5% CL0.1

±0.05%RG

CL0.05

±0.1%RG CL0.1

AC Current

1Phase:

 5mA~30A

3Phase:

 0.2A~30A

30VAmax/

phase

@30A

0.01%RG

0~120%RG

≤30A

0.01%RG

3min



0.2% CL0.05

0.5% CL0.1

±0.05%RG

 CL0.05

±0.1%RG CL0.1

DC Voltage

50mV~1000V

15W(≥30V)

0.01%RG

0~120%RG

≤1000V

0.01%RG

3min

Ripple

≤1%RG

±0.05%RG

CL0.05

±0.1%RG CL0.1

DC Current

5 mA~30A

30VAmax

@30A

0.01%RG

0~120%RG

≤30A

0.01%RG

 3min

Ripple

≤1%RG

±0.05%RG

CL0.05

±0.1%RG CL0.1

Phase

0.00°~359.99°



0.01°

0.00°-359.99°

0.01°



±0.05°

Frequency

40Hz ~70Hz



0.002Hz

40Hz -70Hz

0.002Hz



±0.003Hz

Power/Energy













±0.05%RG

CL0.05

±0.1%RG CL0.1

pf≥0.5

Output

Harmonics

2nd to 63rd



0.01%RG

≤40%









Electrical Level

No. of Channels

Capacity

Others

Relay Output

12V,24V

16

Output current

200mA max



Remote Control

0~5V,0~12V,

0~24V

16





Pulse Output

0~5V,0~12V,

0~24V

1



0~10kHz

adjustable

Test for Information

 Response Time







Error ≤50ms





Other Parameters



Aux. Power Supply

AC 220V±15%

Working Environment

Environment Temperature 20℃-30℃, Humidity: RH ≤85%

Dimensions

500mm(L)×440mm(W)×180mm(H)

Weight



LCD Size

7 inch color touch screen
