3 Phase Panel Meter For Active
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Connection: | 3P3W , 3P4W | Input Voltage: | 57.7VAC - 600VAC |
|---|---|---|---|
| Installation: | Panel Mounting | ||
| High Light: | lcd panel meter,3 phase to single phase |
||

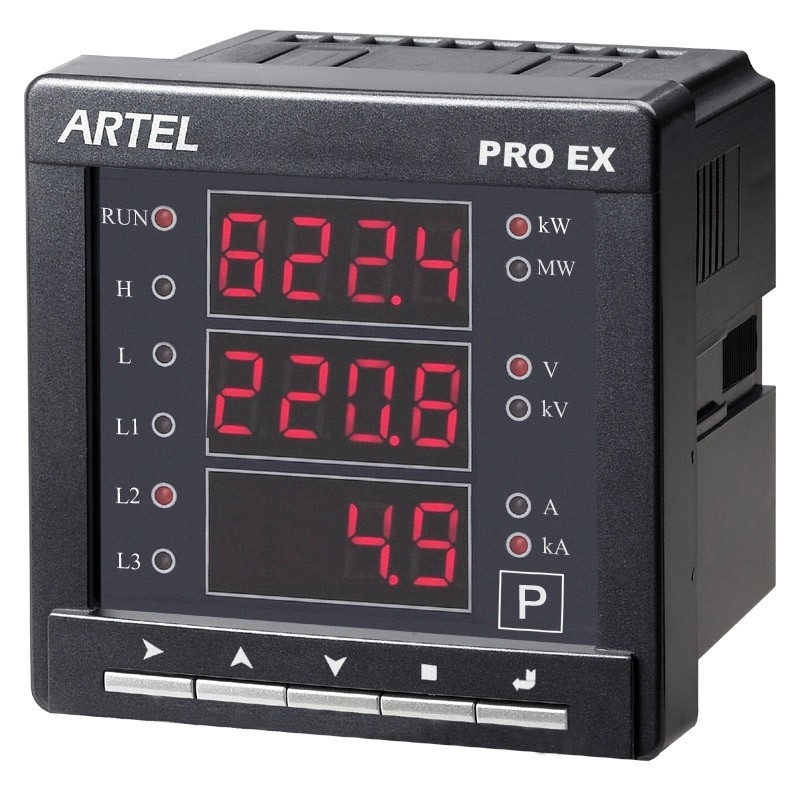

RS485 Analog Relay 3 Phase Panel Meter For Active , Reactive Power
1. Profile
PRO EX digital panel meter is an intelligent instrument that has integrated with modular design of digital display, analog output, RS485, over limit alarm record and relay output. The instrument fulfills GB/T13978-2008, GB/T 13850-1998 standard, GB/T 17626.5-2008, IEC1010 and EN61010 standard.
2. Technical Data
Connection: 3P3W, 3P4W
Input Voltage: 57.7~600VAC
Input Current: 0~5A
PT Scope: 0.1~6500
CT Scope: 0.1~6500
3. Wiring Diagram
PRO EX P53/Q53/S52 3P4W
Note: When it is 3P3W, Line N cannot be connected. Terminal 7# (N) is short circuited with Terminal 9#
(L2) and
B (I2) phase current can be connected or not.
4. Other Parameters:
Operation temperature: -10℃~55℃;
Operation Humidity: ≤ 95% (non-condensing)
Storage temperature: -40℃~85℃;
Storage humidity: ≤ 95%
Dimensional Size: EX53: 96*96*76
Installation: Panel mounting.
EX53 Installation size: 91*91mm
